NH3B10
• Range: 0.2-100KN
• Widely used in automated force measuring devices such as robot hand grip and polishing
• Structure: Made of stainless steel material, with a microstructure
• Appearance: Waterproof and Sealed
产品分类
关键词
NH3B10
- 产品描述
-
Wiring method
Technical Parameters
Rated load
KG
5-50
Comprehensive error
FS
0.03%
Rated output
mv/v
2.0± 0.2
Zero balance
FS
± 1%
Creep
%FS/30min
0.03%
Temp.effect on zero
%FS/10℃
0.03%
Temp.effect on span
%FS/10℃
0.03%
Non-Linearity
%FS
0.03%
Hysteresis
%FS
0.03%
Repeatability
%FS
0.03%
Input resistance
Ω
350± 5
output resistance
Ω
450± 10
Insulation resistance
MΩ
25000(100V)
Compensated temp.range
-10-40
Use temp.range
℃
-35-65
Excitation voltage
V
5-12(DC)
Safe overload
%
150
Ultimate overload
%
200
Cable
m
1.5M*Φ 3
Wiring schematic diagram
Red: Input (+) White: Output (-)

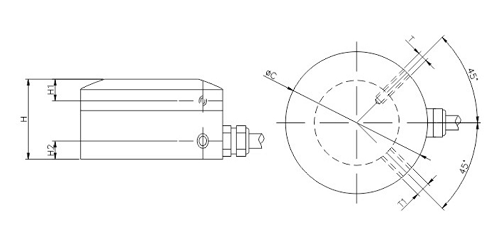

Dimensions
CAPACITY
C
H
H1
H2
T
T1
kg/mm
58.5
33
9
7.5
M4 deep 16
M6
0.5-50
